Remote Access

LeafKVM supports secure remote access through Virtual Private Networks (VPNs). A VPN allows you to reach your device over the internet as if it were on your local network, without exposing ports directly to the public internet.

VPN Access

Using a VPN is the recommended way to access LeafKVM remotely. Devices connected to the same virtual network can communicate securely, regardless of physical location.

Tailscale

Tailscale is a zero-configuration VPN that builds a secure mesh network (called a Tailnet) between your devices using the WireGuard® protocol.

Benefits

• No port forwarding required — works behind NAT, restrictive firewalls, and CGNAT.
• Stable device address — each device receives a persistent Tailscale IP (100.x.y.z) that remains consistent across networks.
• MagicDNS support — connect using hostnames (for example, http://leafkvm) instead of memorizing IP addresses.

Configure Tailscale

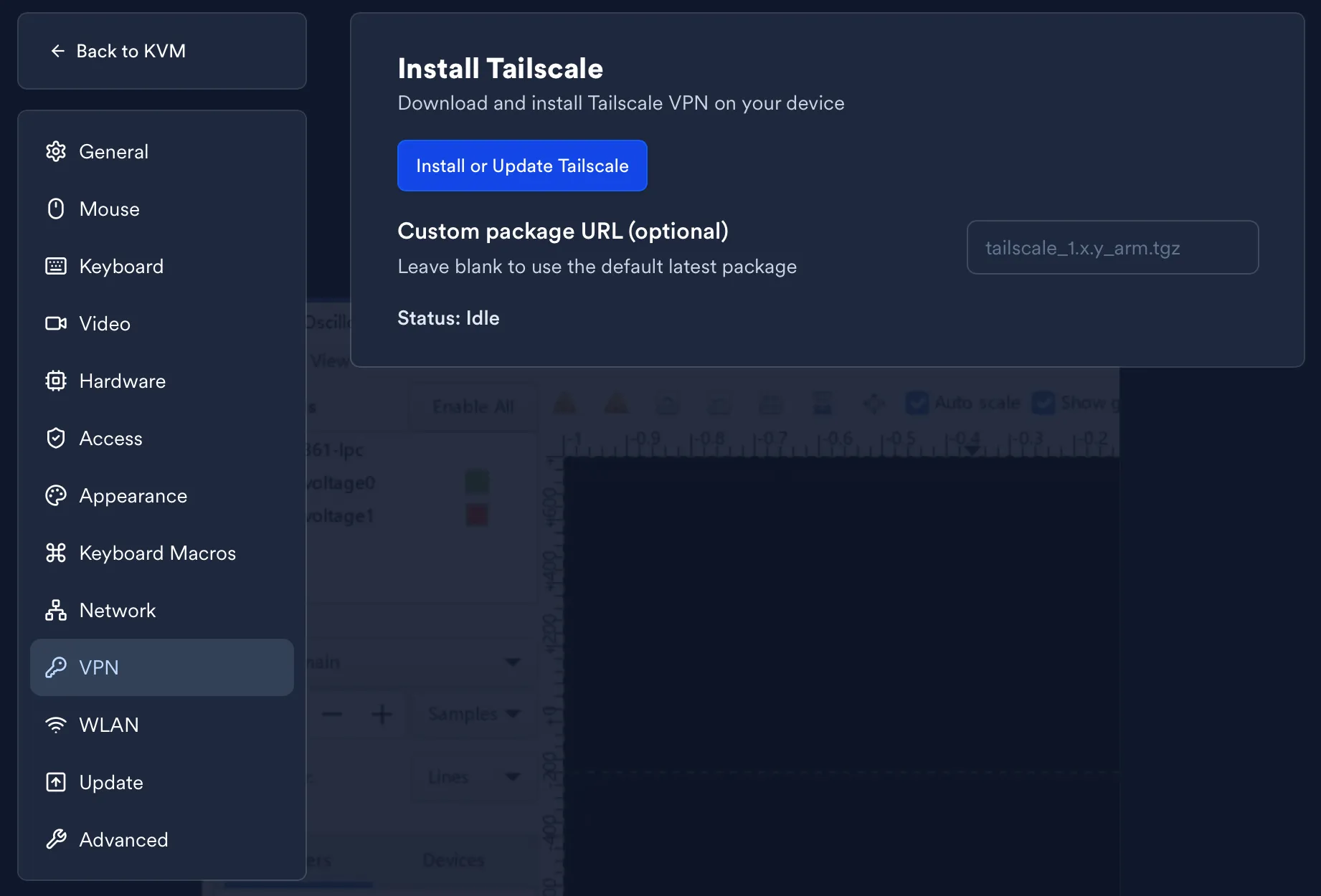

1. Open Settings → VPN in the LeafKVM WebUI.

2. Click Install or Update. Wait until the installation status shows Completed, then return to the VPN page.

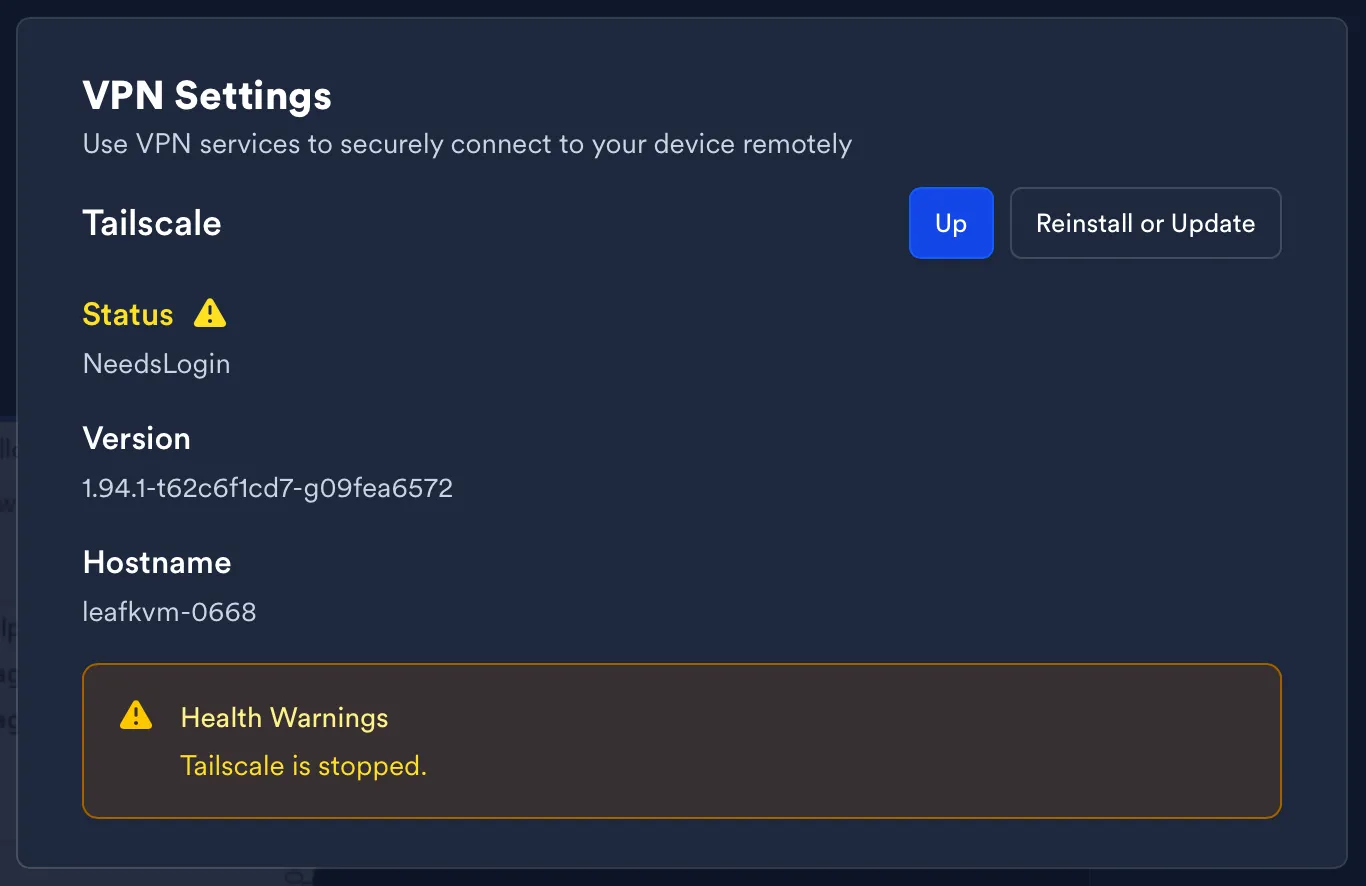

3. Click Up to start Tailscale configuration.

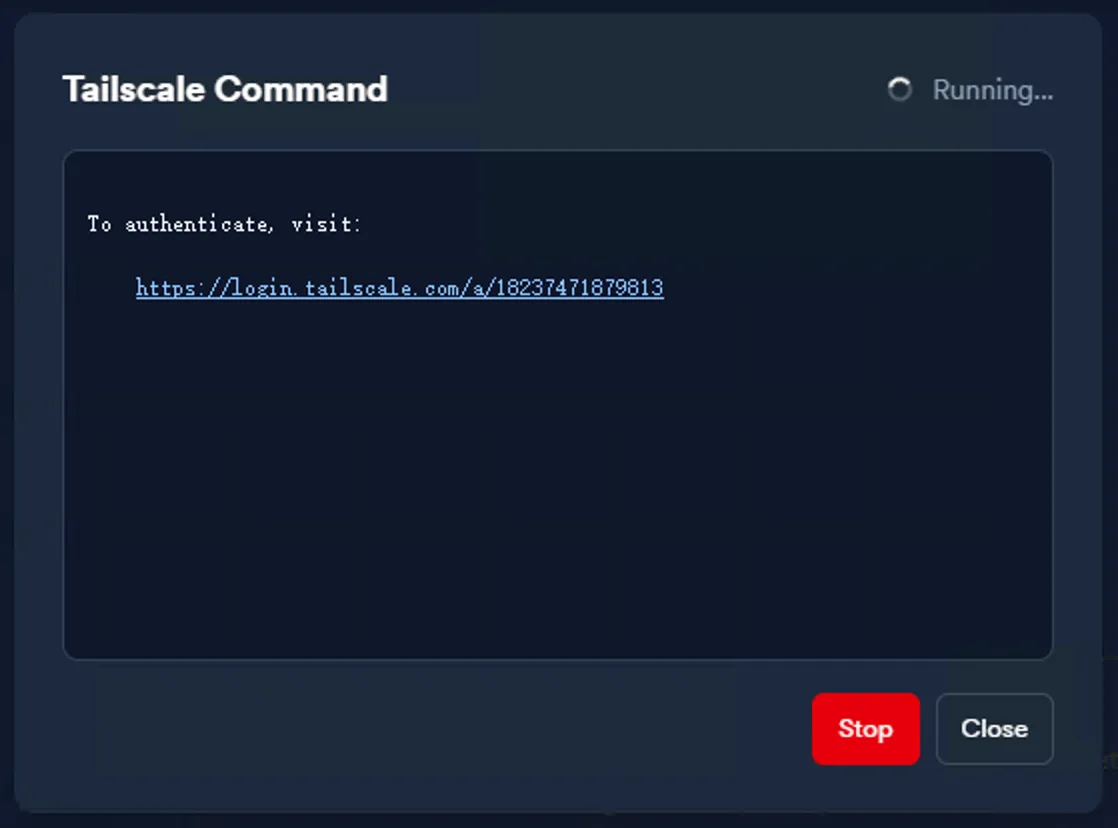

4. A unique authentication URL appears. Open this link in your browser.



5. Sign in to your Tailscale account and authorize the LeafKVM device.

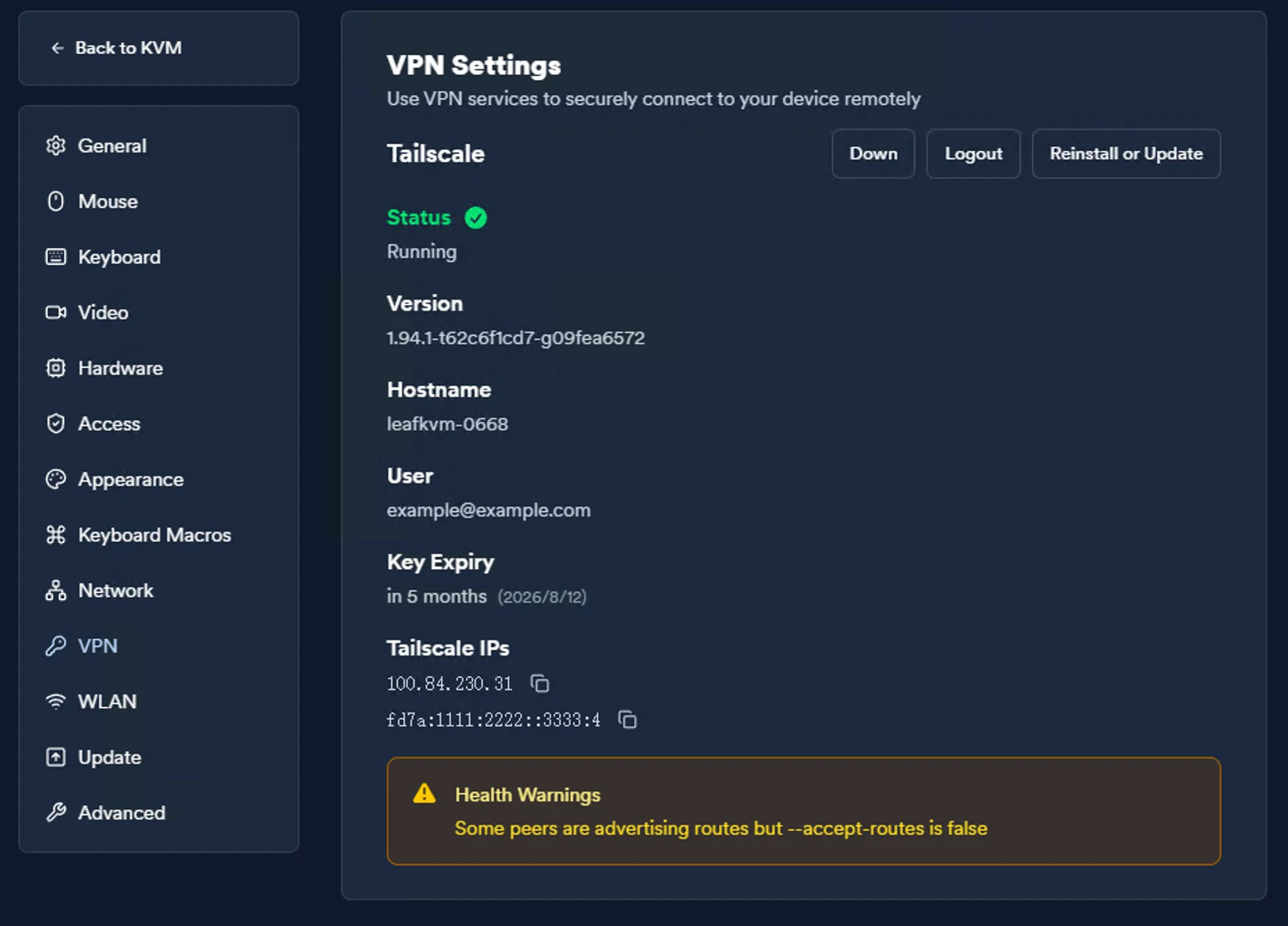

6. After authorization, the assigned Tailscale IP is shown in both the WebUI and the device touchscreen interface.



Caution

Your control device (laptop, desktop, or phone) must also be signed in to the same Tailscale account or Tailnet to connect.

Accessing LeafKVM Remotely

Once Tailscale is active:

• Open a browser on any authorized device.
• Enter the LeafKVM Tailscale IP or MagicDNS hostname.
• The full LeafKVM interface will load as if you were on the same local network.

---

Summary

Using a VPN provides secure, flexible remote access without exposing your network to the internet. With Tailscale enabled, remote management is as simple as opening a browser and connecting through your Tailnet.
